they are hard to find indeed, especially one that is smaller than for instance the filter you'd see on a vw golf diesel (same size as CAV only half the price). i finally had alot of choice in nice little transparant filters with water separation function, by searching on ebay.de for ' diesel wasser ...

No, they didnt ask for the original plate, that one is decorating my loo at the moment. its standard procedure to get the '1' (which basically means you've lost the previous plate, normally speaking), when you go from old plate to new EU style plate. At least thats what they told me. It appears that...

It still has the plates numbers that you can see in the last youtube video. Only i had to put on new EU plates (with a 1 :evil: ) on it, cause the original plate (as in the video) was obsolete.. btw for al dutch builders; the rdw told me that if the bike was newer then '98 it becomes a whole other b...

its now offically a diesel, according to the RDW database.

Thanks lads

I hereby present you this sneak preview;

https://www.youtube.com/watch?v=FfhL43AcSLg

ps. top speed thus far; 97 km/h

the speed-o-meter's precision is 1 km/h

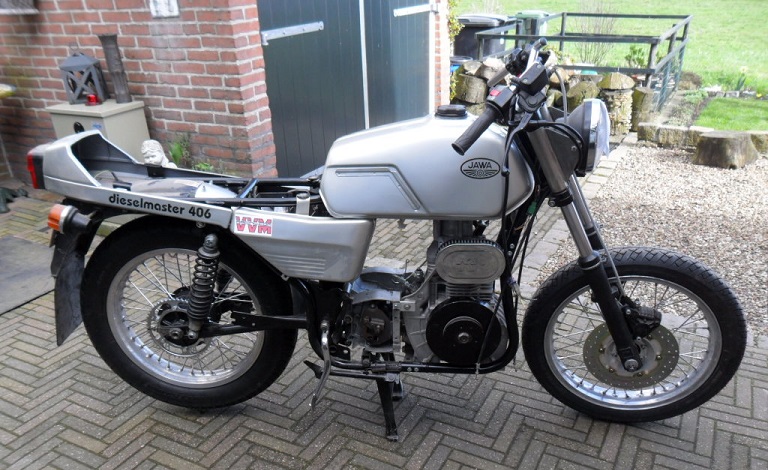

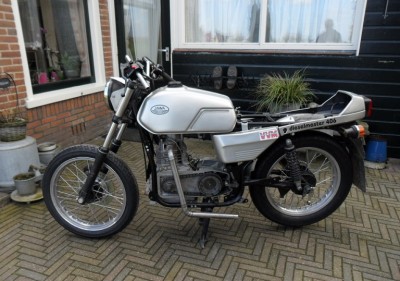

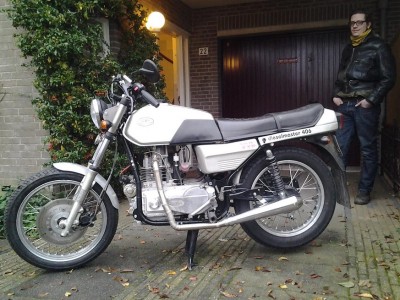

Today we finished the bike, ready for the state roadtraffic test.

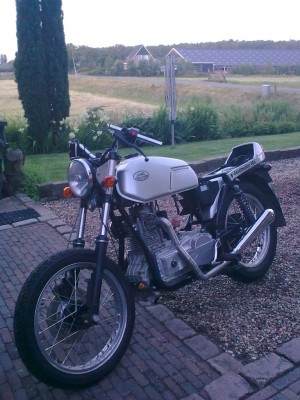

proud owner;

while driving i realized what 'the big knock' means.
this really is 'big knocking'. 'turns more heads then a harley'

greetings fellow bigknockers.

Indeed Jeroen is situated in the idyllic village of Spaarnwoude.

Good news and some other news; The bike has made its maiden ride and we are now handling the 'child deceases'. It turned out that the kickstarter wasn't able to start de diesel, for its not a four stroke kickstarter. It's lacking stroke. So ordered a brand new dieselengine with an electric starter, ...

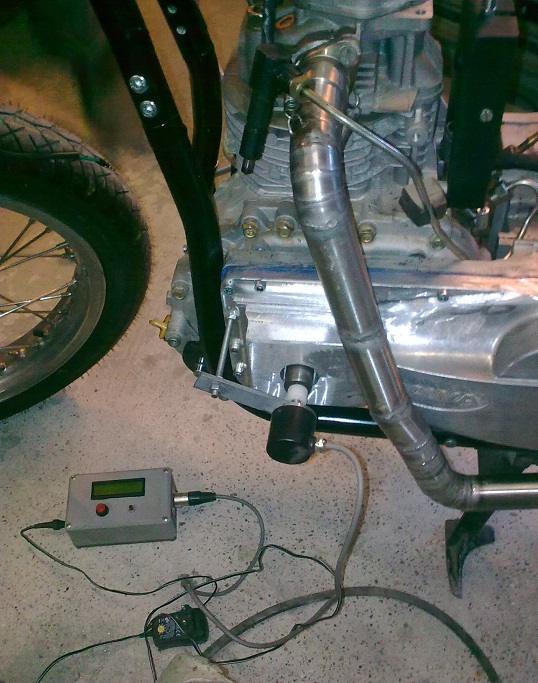

Here we are measuring the point of injection with an angulair measuring device that Jeroen designed, and produced himself.

the exhaust system with megaton damper; do take notice of the finished engine cover;

Here we see a glimp of the revised electrical system, whereas Jeroen made a whole new ''cable tree'' The battery still sits in its original housing. 41.jpg And the side view upon the delrin fusebox that Jeroen made. He has divided the electrical system into four as displayed. 42.jpg And here we have...

Here we see the primary chainwheel being reworked to fit on the diesel crank;

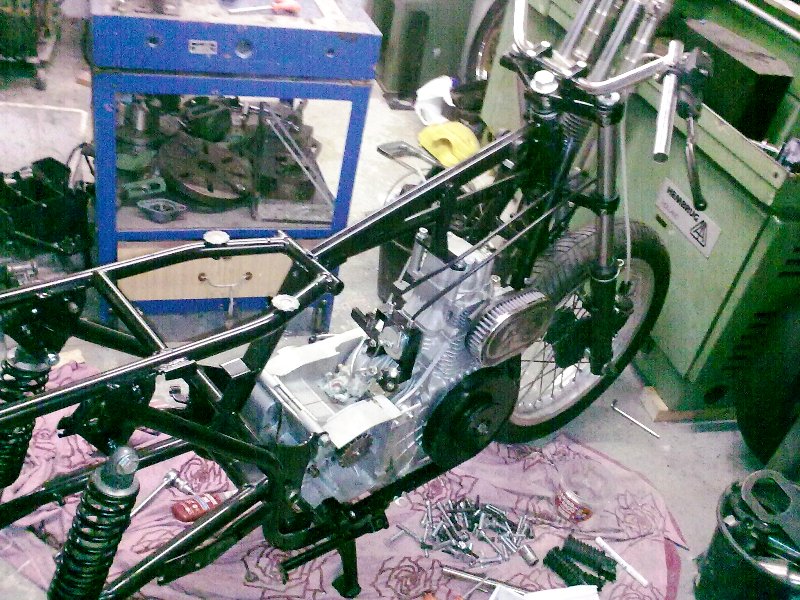

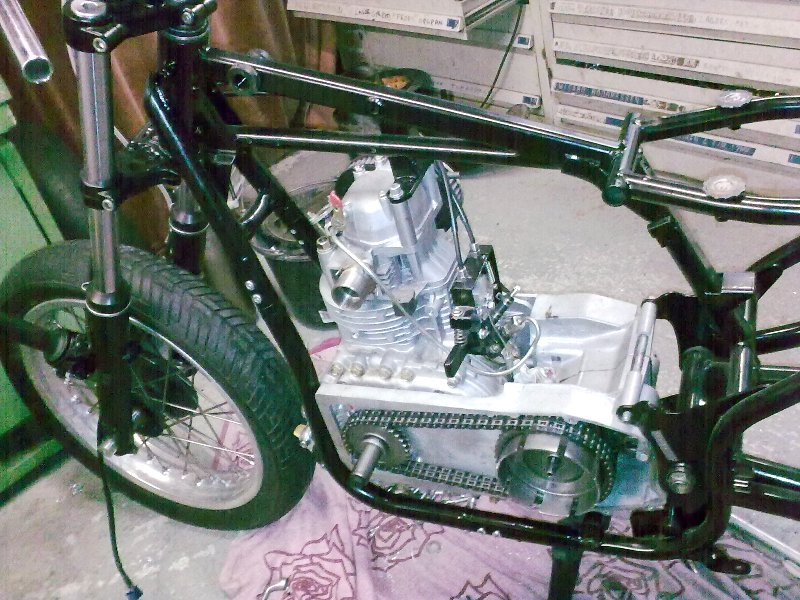

and the primary duplex chain fitted on the bike;
as the chain is now longer, Jeroen made it by joining two original jawa chains.

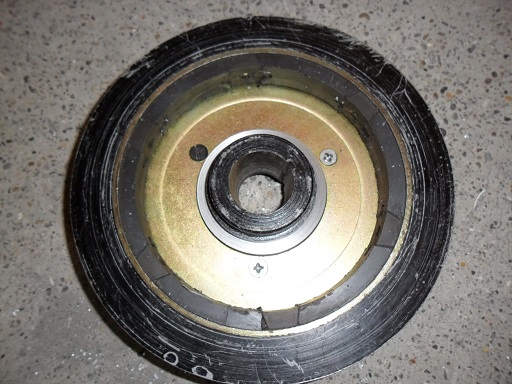

We decided to use an original diesel dynamo, below you see the reworked and assembled flywheel to accomodate for it.

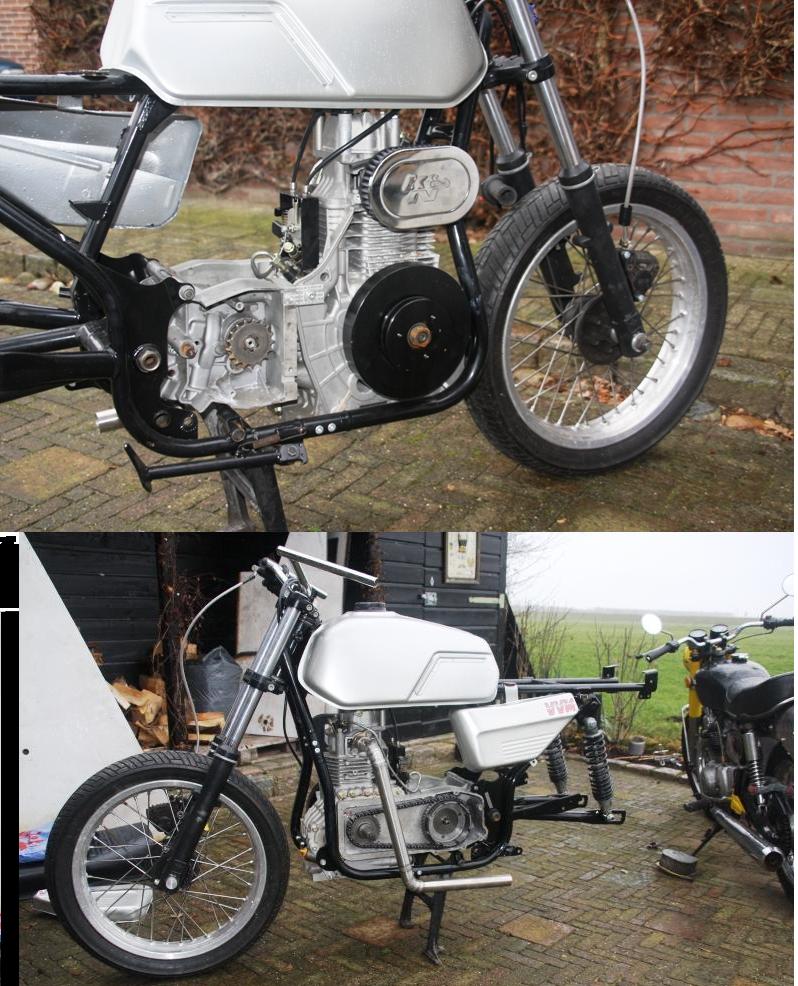

A side view of the bike with the dynamo flywheel fitted. The belt groove on the outer side is now free for other things

Looks good. I had the same problem with mine, I ended up running the injector leak off back to the fuel supply line with a T we wanted to do this as well, since the tank was already painted. however with a T, you could run the risk of getting the mentioned surge, air bubbles that circulate through ...

It appears that a diesel engine dictates the need for a separate dieselpump overflow fuel line, in order to keep the pump from surging (leading to inconsistant idling/running of the engine). Jeroen (from VVM) soddered a brass 6mm (about 1/4'' O.D.) line, that practically runs to the top of the tank....

Here is another new sophisticated piece of VVM work, the (6*** aluminium) front brake disc spacer; 32.jpg from scratch on the laith 33.jpg set, shiny and done This bike woulndt be worth the 'racing' in VVM if it would never see a circuit, better be well prepared; 34.jpg and finally, the overal front...

Because the rear brake/hub is not jawa anymore, but kawasaki (250), the chain casing didnt fit well no more. the tunnel, to accomodate for the rear fork therefore, has to go. 34.jpg you can see some scratch marks from turning the rear wheel, made by the sprocket bolts scraping the surface. with the ...

Hi all, firstly: i wanted to wish everyone a jolly ol' christmas :wink: the rear brake fixation rod turned out be sitting too loose around the rear fork. therefore decided to go in the more original way, like a Jawa normally has its rear brake ankered. 32.JPG 33.JPG the chain tensioners are kept ori...

Here we see the rear brake ''anker'' (rod). First time uploaded, straight from the VVMracing.com workshop

hidiho! the diesel is on its final set of legs. freshly spoked -front- wheel needed extra care, thanks for the wobble haan wheels (er zat een slag in) :o New BT45 dual compound tires. Yes, this bike will need to go full throttle always and everywhere (also in the corners). :) op de poten.JPG current...

lets hope that 4000 km on a diesel are just as comfortable as on a laverda twin :lol: in the meanwhile two wheels are newly spoked by the dutch expert ''haan wheels''. and two new BT45's are waiting to be assembled. Also, boutje and a good friend who's somewhat of a fellow electrician tackled the RP...

today was -as wel call them- 'headlamp ear' day.

Jeroen doing the welding; pretty nice weld i must say. after some more labour with four kinds of grinders & acid.

Ordered a nice little counter; http://www.motorrad-racing-onlineshop.de/images/product_images/original_images/16524_0.JPG i ran into troubles because its hard to find gauges etc. of another bike and the dutch regulations excplicitly say the speedo has to lit up. tackled it all in on go with this nic...

time for a kick with a pic

Hi Sphere,

please contact Jeroen (see VVM site) to make an appointment.

stickered before clear coat.

Thanks Folks!

Currently i'm spray painting all the bodywork. Expect some pics soon.
Color will be motip 55330.

front brake nearing completion only things left is making the disc fit.

isnt it becoming a beauty?

Here's the top nut, custom made by boutje as well as the rod underneath. In order to make the paioli fit to the Jawa frame.

thank you

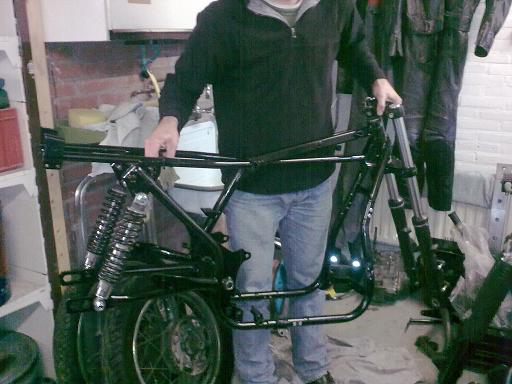

here's the frame before corund blasting/powdercoating; and after, with the new suspension parts fitted;
