Makeing a v belt pulley
Moderators: Dan J, Diesel Dave, Crazymanneil, Stuart
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Makeing a v belt pulley
Was doing a bit of maintenance on my small bike (superdream with a 6hp yanmar onto a 3 speed hand change)
it has chain from engine to clutch and v belt engine to altenator. The chain laid out had 1/2" of play. This I saw in the second build I did but in a shorter time. I would advise anyone not to use chain on the primary unless you have an enclosed oil filled chaincase, as in the enfield.I am now converting the clutch to v belt. Not easy as standard pulleys are all cast iron. So I got a piece of steel 7"X7"X1" this took a day on the lathe to make it round, spent at least another day on it and I might have it done tomorrow. The front pulley I can just buy as long as I can get the correct size then its just the length of the v belt.
it has chain from engine to clutch and v belt engine to altenator. The chain laid out had 1/2" of play. This I saw in the second build I did but in a shorter time. I would advise anyone not to use chain on the primary unless you have an enclosed oil filled chaincase, as in the enfield.I am now converting the clutch to v belt. Not easy as standard pulleys are all cast iron. So I got a piece of steel 7"X7"X1" this took a day on the lathe to make it round, spent at least another day on it and I might have it done tomorrow. The front pulley I can just buy as long as I can get the correct size then its just the length of the v belt.
Sam
-
- Site Admin
- Posts: 1290
- Joined: Fri Jul 15, 2011 4:22 pm
- Location: London
Re: Makeing a v belt pulley
I am also working in this too. I will jewel everyone updated. My chain showed a fair bit of wear in only 500 miles!
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Re: Makeing a v belt pulley
Been out on the bike today complete with new v belt drive, works just fine and it seems to pull much better. The drive of the engine is going through 1 gates xpz quadpower belt. The formula for the belt length is radius of 1st pulley X pi + radius of 2nd pulley X pi + 2 X center distance of pulleys. The cost of the front pulley was £20 the taper lock I already had from the original chain cog. the belt cost £10.
Sam
-
- Site Admin
- Posts: 1290
- Joined: Fri Jul 15, 2011 4:22 pm
- Location: London
Re: Makeing a v belt pulley
Awesome, What setup is this in?
Top speed and gearbox?
Top speed and gearbox?
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Re: Makeing a v belt pulley
This is in the first bike I built, honda superdream with a 275cc yanmar 6hp hand start only coupled to a rotovator 3 speed gearbox that is handchange. It only does 40mph but does 225mpg. So I use this bike over the winter till April then claim the tax back and tax the big bike for the summer months.
Sam
-
- Site Admin
- Posts: 1290
- Joined: Fri Jul 15, 2011 4:22 pm
- Location: London
Re: Makeing a v belt pulley
Thats great!
Any pictures of the build?
I am working on getting mine built up, and doing the vbelt install.
Just got to get the bits together, and then get them turned out
Any pictures of the build?
I am working on getting mine built up, and doing the vbelt install.
Just got to get the bits together, and then get them turned out
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Re: Makeing a v belt pulley

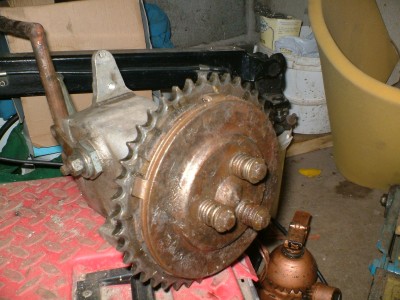

If you mean did I take some pictures of me makeing the pulley sorry no, but I can take a picyure of the finished pulley if required. And I have a spare gearbox so could take a picture of what it looked like originally also. I had to make a tool to cut the v in the pulley. Just got a lathe tool and ground it down till it was a good fit on an original pulley then welded this to another lathe tool at 90deg ,as to get an edge cut on a 7" dia you would need a very big lathe.
Sam
-
- I luv the smell of Diesel...
- Posts: 778
- Joined: Wed Dec 05, 2007 6:56 pm
- Location: Goshen, IN USA
Re: Makeing a v belt pulley
Sam, I admire your ability to produce your own pulley from raw stock. And a bit envious of your access to a lathe big enough for the task. But, for those of us who possess neither, I wonder whether the GM and Ford crankshaft pulleys would accommodate the clutch in question. The larger ones start at nearly 8" OD and are found in increasingly smaller diameters in 1, 2, or 3 groove versions in either steel or aluminum. The examples below are a bit pricey. However, if you can source them from a breaker they are a fraction of that. Salvage yards here in the states are littered with these. Any chance one of these could be mated to the clutch?
http://tinyurl.com/d93vfjd (7.3" OD)
http://tinyurl.com/crxjxdw (7.6 OD)
http://tinyurl.com/c3so8m6 (7.3" OD)
http://tinyurl.com/cgrtq5k (7.9" OD sincle groove)
http://tinyurl.com/celrpfl (7.9" OD double groove)
http://tinyurl.com/bqx4mpf (7.9" OD triple groove)
http://tinyurl.com/d93vfjd (7.3" OD)
http://tinyurl.com/crxjxdw (7.6 OD)
http://tinyurl.com/c3so8m6 (7.3" OD)
http://tinyurl.com/cgrtq5k (7.9" OD sincle groove)
http://tinyurl.com/celrpfl (7.9" OD double groove)
http://tinyurl.com/bqx4mpf (7.9" OD triple groove)
Ron
-
- Site Admin
- Posts: 1290
- Joined: Fri Jul 15, 2011 4:22 pm
- Location: London
Re: Makeing a v belt pulley

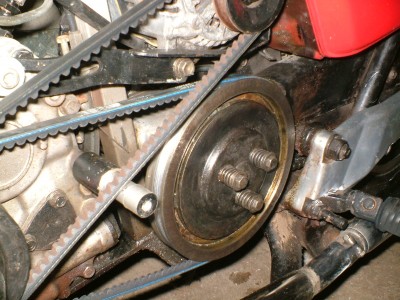

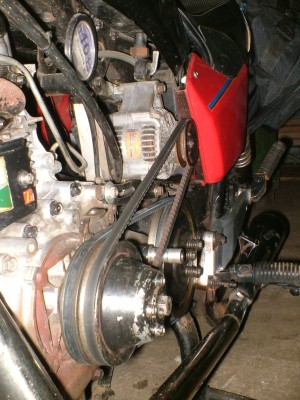

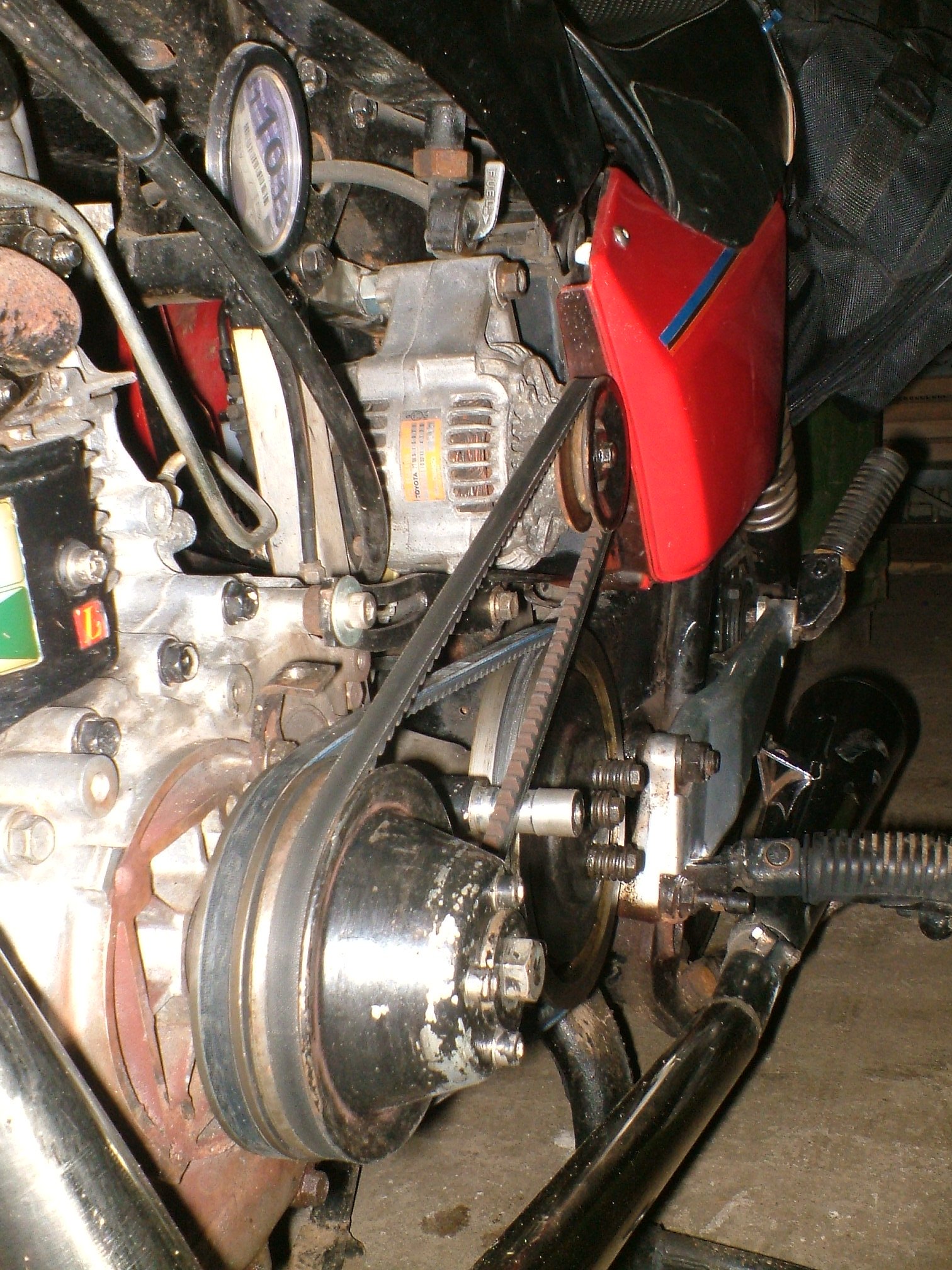

I meant pictures of the finished productsbrumby wrote:If you mean did I take some pictures of me makeing the pulley sorry no, but I can take a picyure of the finished pulley if required. And I have a spare gearbox so could take a picture of what it looked like originally also. I had to make a tool to cut the v in the pulley. Just got a lathe tool and ground it down till it was a good fit on an original pulley then welded this to another lathe tool at 90deg ,as to get an edge cut on a 7" dia you would need a very big lathe.
-
- Site Admin
- Posts: 1290
- Joined: Fri Jul 15, 2011 4:22 pm
- Location: London
Re: Makeing a v belt pulley
I think it will be very difficult without knowing the depth of the pulley, and it MAY be difficult to source the correct V belt size.pietenpol2002 wrote:Sam, I admire your ability to produce your own pulley from raw stock. And a bit envious of your access to a lathe big enough for the task. But, for those of us who possess neither, I wonder whether the GM and Ford crankshaft pulleys would accommodate the clutch in question. The larger ones start at nearly 8" OD and are found in increasingly smaller diameters in 1, 2, or 3 groove versions in either steel or aluminum. The examples below are a bit pricey. However, if you can source them from a breaker they are a fraction of that. Salvage yards here in the states are littered with these. Any chance one of these could be mated to the clutch?
http://tinyurl.com/d93vfjd (7.3" OD)
http://tinyurl.com/crxjxdw (7.6 OD)
http://tinyurl.com/c3so8m6 (7.3" OD)
http://tinyurl.com/cgrtq5k (7.9" OD sincle groove)
http://tinyurl.com/celrpfl (7.9" OD double groove)
http://tinyurl.com/bqx4mpf (7.9" OD triple groove)
Still, looks promising.
-
- I luv the smell of Diesel...
- Posts: 129
- Joined: Fri Oct 12, 2012 9:04 am
- Location: scotland uk
Re: Makeing a v belt pulley
http://www.backyardmetalcasting.com has info on casting and machining pulleys and on the forum http://www.alloyavenue.com they cover how to machine a pulley wihout a proper lathe
-
- I luv the smell of Diesel...
- Posts: 227
- Joined: Sun Jun 14, 2009 11:48 am
- Location: Bristol, UK
Re: Makeing a v belt pulley
Standard pulleys from Gates, Anti-friction etc are indeed cast iron, but dig around on the net - there are PLENTY of companies making aluminium V-belt and toothed pulleys for all sorts of applications.
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Re: Makeing a v belt pulley
Interesting I hadnt looked at pulleys on engines as most of them over this side of the pond now are cast multi v with a center that has a bonded rubber in it. Anyway I was very tight on space. Bigger than 7" and it would hit the swing arm, smaller and it would not have fitted onto the original clutch plate.
Sam
-
- I luv the smell of Diesel...
- Posts: 761
- Joined: Sat Apr 21, 2007 11:35 am
- Location: UK northants
Re: Makeing a v belt pulley
How do you find the 3 speed Albion box performs? Does the clutch stand up and do you think it would handle 8/10hp??
I only ask as they are quite slim and come up on ebay quite often.
I was considering fitting a manual box on my MZ/Robin but room is at a premium and the only other box that might fit would be a Villiers but the prices are getting silly.
I believe you are in agriculture maybe you know of a source??
I only ask as they are quite slim and come up on ebay quite often.
I was considering fitting a manual box on my MZ/Robin but room is at a premium and the only other box that might fit would be a Villiers but the prices are getting silly.
I believe you are in agriculture maybe you know of a source??
-
- Site Admin
- Posts: 1290
- Joined: Fri Jul 15, 2011 4:22 pm
- Location: London
Re: Makeing a v belt pulley
Looks great! Many thanks for the pics
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Re: Makeing a v belt pulley
The Albion box seems to stand up ok and the clutch never seems to slip, I got both mine from the Stafford motorcycle show and autojumble, from memory about £25 each. I suspect they were fitted to rotorvators so would probably have been married to maybe a 10hp petrol but that is just a guess. I quite like the hand change as going up the box i just change with my knee.
Sam
-
- I luv the smell of Diesel...
- Posts: 761
- Joined: Sat Apr 21, 2007 11:35 am
- Location: UK northants
Re: Makeing a v belt pulley
Yeah the ones on ebay are usually advertised as vintage motorcycle boxes. Whether that's true or not I don't know but they look more agricultural to me. By the way do they have a positive stop or do you need a gate??
-
- I luv the smell of Diesel...
- Posts: 517
- Joined: Sun Dec 10, 2006 8:35 pm
- Location: STAFFORDSHIRE ENGLAND
Re: Makeing a v belt pulley
There is a sort of clunk so i havn`t got a gate on mine. There is only three gears and neutral is between 1st & 2nd.
So if you make your lever right the movement for the different gears is obvious.
So if you make your lever right the movement for the different gears is obvious.
Sam
