CAD Drawings who has them

[freefuel]

I'm starting with nothing so, I'm looking to put togeather a collection of drawings for both stock gasser and diesel bell patterns. during this quest I'm interested to see how the V-twin Yanmar type diesel will fit in a BMW R100 frame, or other simalar type shaft driven bike.

[Stuart]

Unfortunately you will find this a world of prototypes with not too many drawings floating about.
You may have more luck mating an engine to the shaft drive K series Beemers

[freefuel]

Stuart, Thank you for the tip about the K series bikes. what year range were/are they? BMW is not my strong point for nugets of knowledge.

as for the drawings situation yeah this seems to be a common theame with Volkswagen and Jeeps too. especially when trying to mix and match parts.

on a different note, it might be fun to work up a bellhousing for the Type 2 VW to take an industrial pattern diesel like the now all too common Kabota refer unit pulls.

[Stuart]

Stuart, Thank you for the tip about the K series bikes. what year range were/are they? BMW is not my strong point for nugets of knowledge......

Offhand I'm not sure about year range. Best bet is ask Mr Google or Miss WiKi?

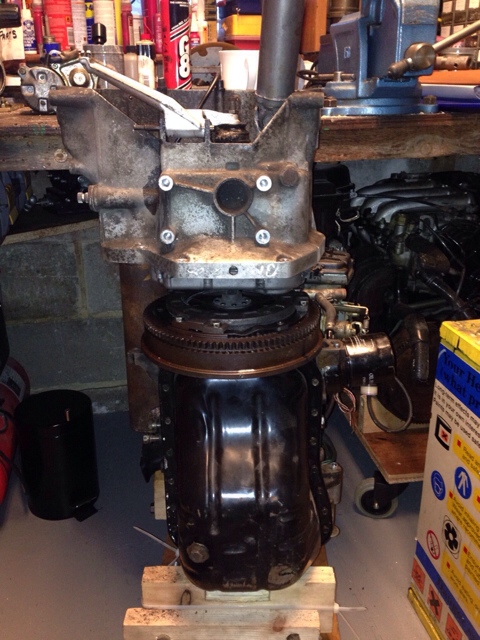

I don't think the basic design changed much. From gearbox to engine is 130mm approx and is the same if Polo engine is used.

[freefuel]

I've been searching grabcad and CNCzone for drawings, other then further refining questions for Mr. Google, and Mrs Wiki. Where else to look for currently availble drawings?

[Stuart]

https://www.dieselbikeforum.com/viewtopic.php?t=1655

[freefuel]

I have a plan for a Kubota V2203 poweed bike with a short Jeep T90 style transmisstion, and automotive read diff used as both a stressed frame member and it's tubes for rear swing arm piviots. would be nice to have a full suspensin on a bike this large.
